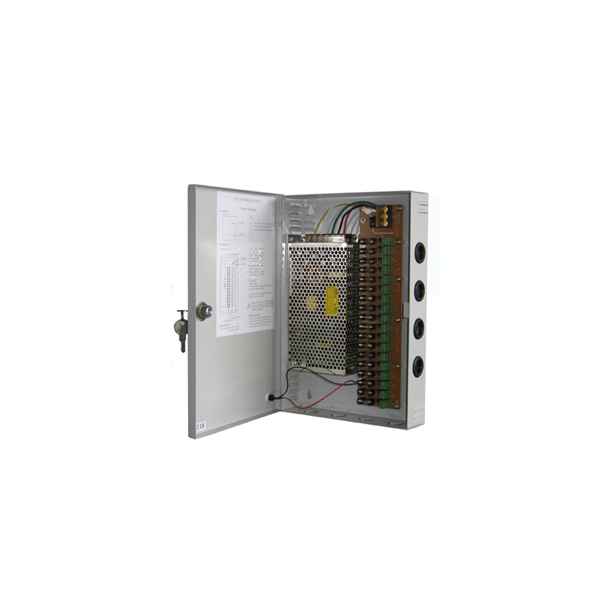

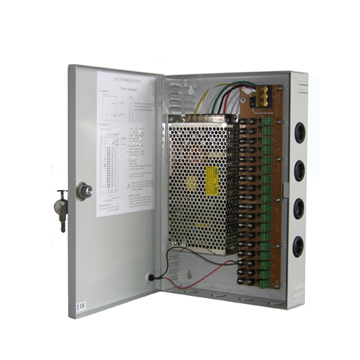

18 Channel output Power supply for CCTV surveillance

18 Channel output Power supply for CCTV surveillance
Product Feature
Item no.: ST-PA18
*18 Channel output Power supply for CCTV surveillance
*The adaptor has 18 separate outputs (allows to connect up to 18 devices)
*Input Voltage: AC90~260V 50-60Hz
*Output Voltage: DC11-13V
*Max. Output Current(Total): 10A/15A/20A/24A(Optional)
*Power: 96W
  • 18 Channel output Power supply for CCTV surveillance
Specifications


  • 18 Channel output Power supply for CCTV surveillance
  • The adaptor has 18 separate outputs (allows to connect up to 18 devices)
  • Have the power off jumpers for each output
  • Input Voltage:  AC90~260V 50-60Hz
  • Output Voltage: DC11-13V
  • Max. Output Current(Total): 10A/15A/20A/24A(Optional)
  • Power: 240W
  • Output connectors’ type: Terminal
  • Dimensions: 236 x 207 x 52 mm
  • Weight: 2KG
  • Available feature of Self-Protection, 18 devices Individual work; Protection against over-Voltage, Over-Current
