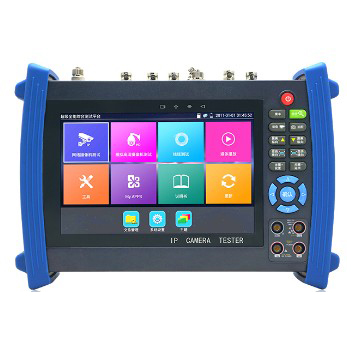

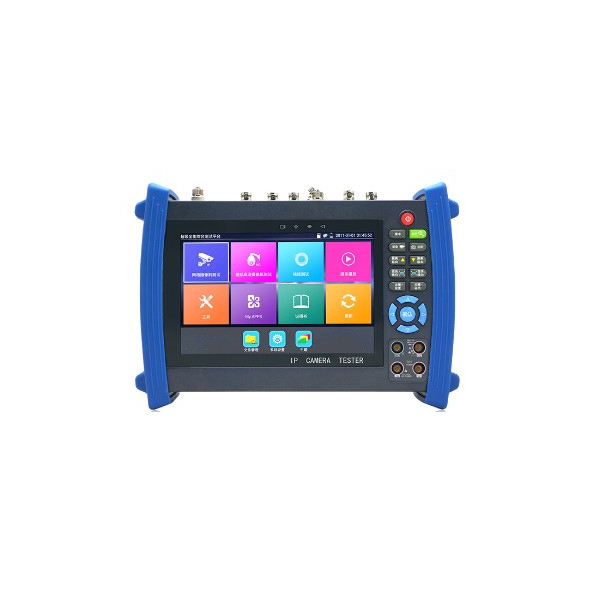

Model |
ST-IPC86 |
|
Display |
New 7 inch touch screen , resolution 1920x1200 |
|
Network port |
10/100M auto adjust, RJ45 |
|
WIFI |
Built in WIFI, 150M, receive wireless camera image etc |
|
IP camera Test |
Support IPC Tester, Viewer, Rapid, RTSP, ONVIF, Hik and Dahua test tool |
|
TVI camera type (Optional) |
Max. 5MP TVI Camera test, 2560X1944P, UTC Control/OSD Menu |
|
CVI camera type (Optional) |
Max. 4MP TVI Camera test, 2560X1944P, UTC Control/OSD Menu |
|
AHD camera type (Optional) |
Max. 4MP TVI Camera test, 2560X1944P, UTC Control/OSD Menu |
|
SDI camera test (Optional) |
HD SDI/EX-SDI Camera test, Support 1080P 50/60FPS |
|
Digital Multi-meter (Optional) |
AC/DC Voltage, A/DC Current, Resitance, Capacitance, Data hold relative measurement, Continuity testing. |
|
TDR Cable test (Optional) |
Cable’s open circuit and short circuit measurement (NBC or Telephone Cable) |
|
Video level test |
1 channel BNC Input & 1 channel Output , NTSC/PAL (Auto adapt) |
|
Video level meter |
PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement |
|
Zoom Image |
Support Analog camera and IP camera image zoom /move |
|
Snapshots, Video record, Record playback |
Image Screenshots, record , save , view and record play back |
|
HDMI output |
1 channel HDMI output, support 1920×1080P |
|
12V/2Apower output |
Output DC12V/2A power for camera |
|
5V power output |
5V 2A power output, Same as a mobile phone’s Power bank |
|
PoE power output |
48V PoE power output, Max power 24W |
|
Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
|
PTZ control |
Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P etc. |
|
Video Signal Generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
|
Network color bar generator |
Local side PC can login the tester, send the signal by network ,test network connection communication whether normal |
|
Data monitor |
Captures and analyzes the command data from controlling device，also can send hexadecimal |
|
Network test |
IP address scan, link scan, Ping test, Quickly search the connection IP camera and other device’s IP address |
|
Cable scan |
Search the cable by the audio signal |
|
PoE test |
Measurement POE switch or PSE power supply voltage and cable connection status |
|
External power supply |
DC 12V 2A |
|
Rechargeable Battery |
Built-in 7.4V Lithium polymer battery ,6500mAh |
|
Rechargeable |
Charging time 7~8 hours, normal working time 16 hours |
|
Operation setting |
Retina touch screen, OSD menu |
|
Working Temperature |
-10℃---+50℃ |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
231mm x 172mm x 52mm / 1.3Kg |
