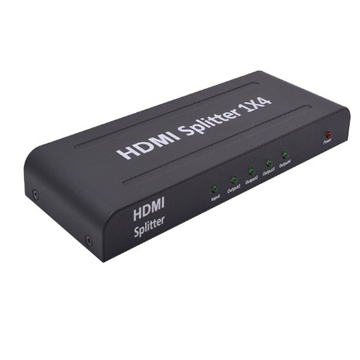

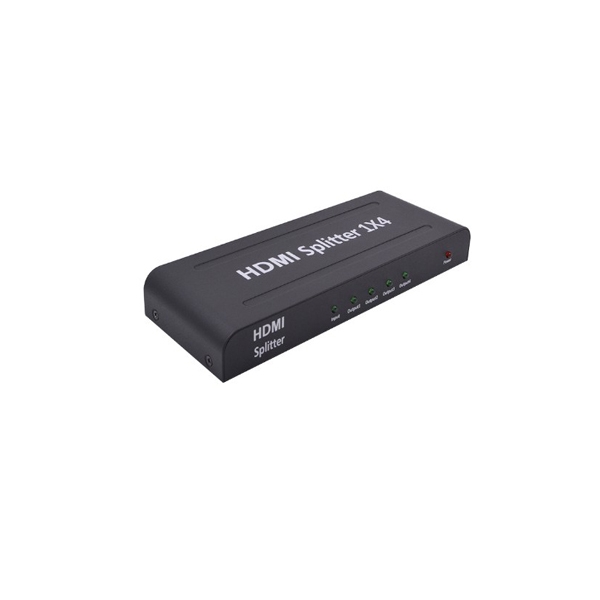

This 1x4 HDMI splitter can connect set-top-box , DVD player , d-vhs player , HDTV or other HD devices to two display devices via HDMI output interfaces and let the two display devices show the same picture This product offers solutions for HDTV retail and show site , HDTV , set-top-box , DVD and Projector factories , data center control , information distribution , conference room presentation , school and corporate training environment.
| HDMI Version | HDMI 1.3b |
| HDMI Resolution | Up to 1920×1080P/60Hz |
| Support Video Color Format | 24/30/36 Bit Deep Color |
| Support Audio FormatDTS/Dolby-AC3/DSD | DTS-HD/Dolby-TrueHD/LPCM5.1/ |
| HDMI Max Bandwidth | 225MHz |
| HDMI Max Transmission Rat | 2.25Gbps |
| HDMI Input Cable Distance | 10m AWG26 HDMI Standard Cable |
| HDMI Output Cable Distance | 10m AWG26 HDMI Standard Cable |
| Max Working Current | 500mA |
| Power Adapter Format | AC 100V-240V 50Hz/60Hz,DC 5V-12V/1A |
| Operating Temperature Range | -10~+55℃ |
| Storage Temperature Range | -20~+60℃ |
| Operating Humidity Range | 10~90%RH(No Condensation) |
| Storage Humidity Range | 5~95%RH(No Condensation) |
| ESD Protection Human Body Model | ±8kV(Air-gap Discharge)±4kV(Contact Discharge) |
| Dimension (LxWxH) | 178×67×22(mm) |
| Weight | 60g |
| Product Case | Metal Aluminum |
| Color | Black |
